PON OTDR OPM VFL 3 In 1 Optical Test Instruments With Online Test Function

Name: PON OTDR OPM VFL 3 In 1 Optical Test Instruments With Online Test Function
Brand: JIZHONG
Price: 560 USD

PON OTDR OPM VFL 3 In 1 Optical Test Instruments With Online Test Function Manufactures

Brand Name : JIZHONG

Model Number : TWH-1625

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 1

Price : 560~760

Payment Terms : Western Union, MoneyGram, L/C, T/T

Supply Ability : 1000pcs/Month

Delivery Time : Depends

Packaging Details : 200mm(Length)×130mm(Width)×98mm(Height)

Product Name : OTDR OPM VFL 3 in 1 device

Wavelength : 1310/1550/1625nm

Fiber connector : FC/PC option

VFL : 10mW (customized)

Display : 2.4"TFT Color Screen

Portal : MINI USB

Weight (g, excluding battery) : 450G

Contact Now

Economical PON OTDR OPM VFL 3 in 1 Optical Test Instruments With Online Test Function

Decription

OTDR OPM VFL 3 in 1 is used to carry out troubleshooting positioning and analysis for FTTH optical networks. It features the online test,test through splitter up to 64 splitters deployed at one tier or two tiers and OPM+VFL functions.

Technical Parameters

Product Keywords	Handheld MINI FTTH PON OTDR Tester Optical Fiber Instrument For Engineer Test
Test Dead Zone	≤3m
Dead Zone of Reflective Event	≤10m
Dead Zone of Attenuation Event	≤30m
Distance Resolution	1m
Pulse Width	10ns-10us
Distance Uncertainty	±(0.8m ± 0.01% * Test distance ±Resolution)
Threshold of Loss	>0.8dB
Resolution of Loss	0.1dB
Connector	FC /PC
OPM Supported Wavelength	(850,1300,1310,1490,1550,1625)nm
VFL	10mw (standard) 1mw, 5mw, 20mw (customized item)
Storage Ability	100 items
Display	2.4” TFT color screen
Portal	Mini USB
Power Supply	5# AA battery, Rechargeable battery, offer power supply with USB line
Working Time	Standby>15 Hours ,Test>8 Hours
Dimension(LxWxH)	210x 120x 55 mm (including protective case)
Weight	About 450g
Storage Temperature	-20~ +60 ℃, < 90% RH
Working Temperature	-10 ~ +50 ℃, < 90% RH

Accessories

Description	Qty	Remark
Host	1
Jelly Anti-shock Sleeve	1
USB Cable	1	Mini USB
3M Patch Cord	1	FC/PC-SC/PC
Flange Connector	2	SC-SC,FC-SC
Battery	3
Charger	1	5V/2A
Clean Cotton Swab	1	Package
Soft bag	1
User Manual	1
Pass Certificate	1

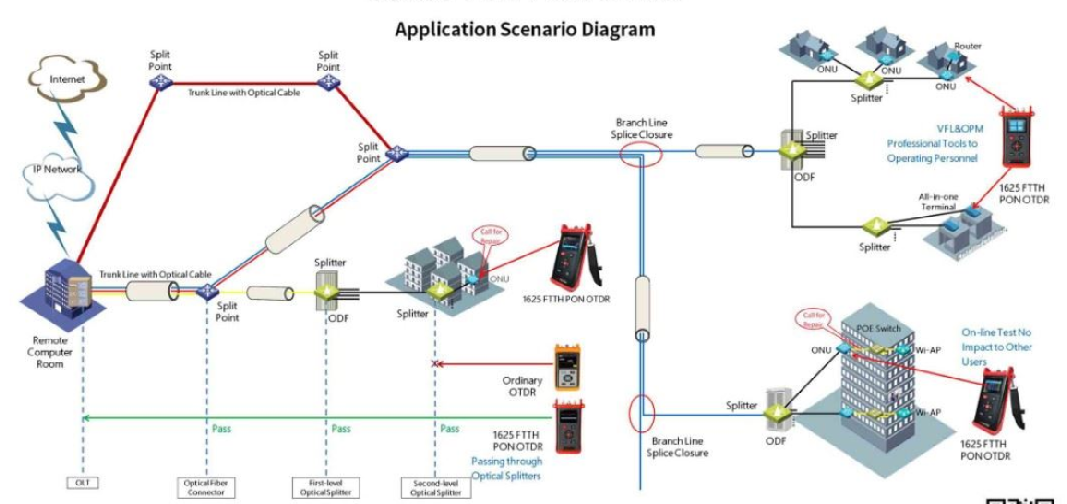

Application

PON OTDR OPM VFL 3 In 1 Optical Test Instruments With Online Test Function
